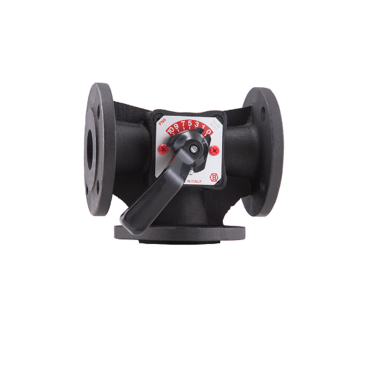

3-ways sectorial mixing valve P51 handle control flanged PN6
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
EPDM
DIN
| Model: | Mixing valve sector mix | Material body: | Cast iron EN-GJL-250 |
| Connection: | Flanged PN6 | Material rotor: | Gast iron |
| Temperature: | Fluid 0°C / +110°C | Material seat: | EPDM |
| Pressure: | 6 bar see pdf | Leakage: | DN40-DN100 0,1 % del Kvs |
| Actuating: | Position lever | Leakage: | DN125-DN150 0,5 % del Kvs |
Datasheet (PDF)
| SKU | P510W3SECT |
|---|
| Body material | Cast Iron-GG25-EN-GJL-250 |
|---|---|
| Disc / Ball / Wedge | Cast Iron-GG25-EN-GJL-250 |
| Seat | EPDM |
