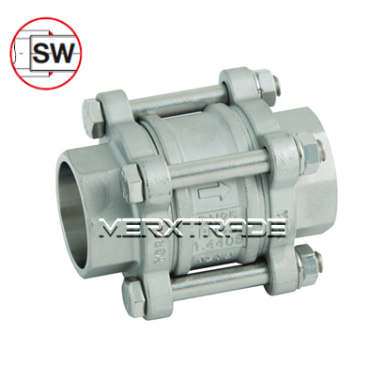

Check valve 3-piece body stainless steel socket weld

Model: 3 pieces with spring Material body: St.St. ASTM A351 CF8M
Connection: Butt weld Material disc: St.St. ASTM A240-316
Pressure: 63 bar check PDF Material seat: St.St. ASTM A240-316
Temperature: - 20°C  +200°C Material spring: St.St. AISI 316



The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-3256382
Body material SS-ASTM-A351-CF8M
Disc / Ball / Wedge ASTM-A240-316
Seat ASTM-A240-316
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-3256382008 Check-Valve-3-Piecebody -Spring-Socketweld 8 8 60
€40.30
- +
MXT-3256382010 Check-Valve-3-Piecebody -Spring-Socketweld 10 10 60
€40.30
- +
MXT-3256382015 Check-Valve-3-Piecebody -Spring-Socketweld 15 15 63
€50.82
- +
MXT-3256382020 Check-Valve-3-Piecebody -Spring-Socketweld 20 20 71
€66.61
- +
MXT-3256382025 Check-Valve-3-Piecebody -Spring-Socketweld 25 25 81.5
€78.12
- +
MXT-3256382032 Check-Valve-3-Piecebody -Spring-Socketweld 32 32 91
€108.65
- +
MXT-3256382040 Check-Valve-3-Piecebody -Spring-Socketweld 40 40 97.5
€156.72
- +
MXT-3256382050 Check-Valve-3-Piecebody -Spring-Socketweld 50 50 117
€224.28
- +
MXT-3256382065 Check-Valve-3-Piecebody -Spring-Socketweld 65 65 131.5
€388.61
- +
MXT-3256382080 Check-Valve-3-Piecebody -Spring-Socketweld 80 80 143.5
€494.13
- +
MXT-3256382100 Check-Valve-3-Piecebody -Spring-Socketweld 100 100 174.5
€736.07
- +
