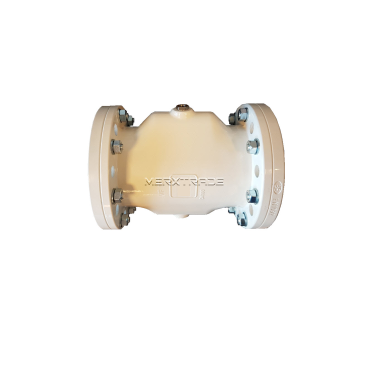

Pinch valve AKO type VF pneumatic flanged - Aluminium / NR anti abrasion - PN10
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
DIN
| Model: | Pinch valve AKO | Material body: | Aluminium AlSi10Mg |
| Connection: | Flanged PN10 | Material sleeve | Natural rubber anti abrasion |
| Actuating: | Pneumatic | Class. sleeve: | High resilience |
| Pressure: | Check PDF | Finish: |
Powder coated 60-80μm RAL9010
|
| Temperature: | - 10°C ~ 80°C | Conform: | PED (97/23/EC) and ATEX |
Max pressure:
| Size: | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Bar: | 6 | 6 | 6 | 6 | 6 | 6 | 4 | 3 | 3 |
Datasheet (PDF)
| SKU | MXT-2080230000 |
|---|
| Body material | Aluminium |
|---|---|
| Seat | Natural rubber anti-abrasive |
Air operated pinch valves Series: VF
Socket type: Flange (DIN)
Body: Aluminium
Sockets: Aluminium
Sleeve: Natural rubber (anti-abras.)
AKO type: VF040.03X.33.30LA, VF050.03X.33.30LA, VF065.03X.33.30LA, VF080.03X.33.30LA, VF0100.03X.33.30LA, VF125.03X.33.30LA, VF150.03X.33.30LA , VF200.03X.33.30LA , VF250.03X.33.30LA , VF300.03X.33.30LA
