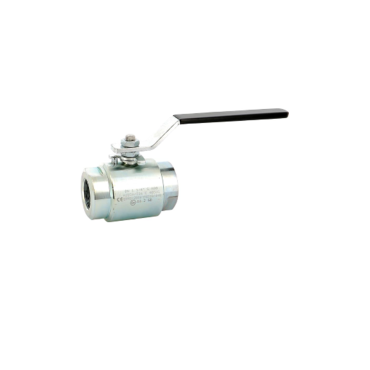

Ball valve 2piece body steel 800 LBS NPT-Fire Safe
97/23/EC directive N° 0948 - 800 lbs
PTFE + carbon graphite seats
Anti-blowoutstem - Full bore - Antistatic device
Fire safe BS 6755
Max. pressure: 138 bar
Temperature range: -20°C/+180°C
Connection= NPT
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-742271700N |
| Body material | Steel ASTM A105 |
| Disc / Ball / Wedge | Stainless steel ASTM A182 F316 |
| Seat | PTFE + carbon graphite |
