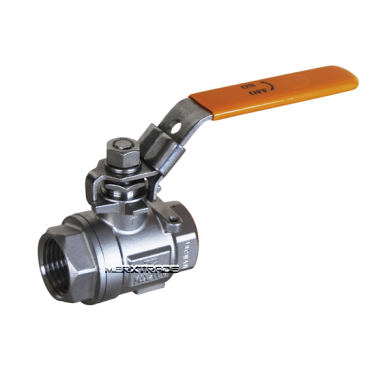

Ball valve 2-piece body - high temperature - stainless steel - thread BSP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | 2-piece High temperature | Material body: | Stainless st. EN 1.4408 |
| Connection: | Thread BSPT ISO 7/1 Rp | Material seat: | PTFE filled 15% graphite |
| Temperature: | - 20°C + 200°C | Actuating: | Handle with locking |
| Max pressure: | 63 Bars up to DN3/4" > check PDF | Tightness: | According to TA LUFT |
| Max pressure steam: | 11 Bars check PDF | Class: | Atex |
Datasheet (PDF)
| SKU | MXT-7140022000 |
|---|
| Body material | Stainless Steel-ASTM A351 CF8M |
|---|---|
| Disc / Ball / Wedge | SS-ASTM-A351-CF8M |
| Seat | PTFE + carbon graphite |
