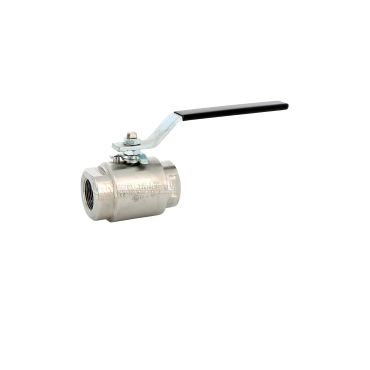

Ball valve 2piece body Stainless steel 800 LBS BSPP-Fire Safe

kogelkraan EX II 2 GD atex fire safe roestvast staal , ball valve stainless steel thread

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

BSP

PTFE

800.lbs

97/23/EC directive N° 0948 - 800 lbs - PTFE + carbon graphite seats - Anti-blowoutstem - Full bore - Antistatic device - Fire safe BS 6755 - Max. pressure: 138 bar-Temperature range: -30°C/+180°C

Datasheet (PDF)

SKU	MXT-7422716-BSP-Fire.Safe

Body material	Stainless Steel-ASTM A182 F316
Disc / Ball / Wedge	ASTM A182 F316
Seat	PTFE + carbon graphite

SKU

Product Name

Length

€ / Piece

Qty

MXT-7422716002 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 1/4"

1/4"

€120.44

MXT-7422716003 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 3/8"

3/8"

€120.44

MXT-7422716004 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 1/2"

1/2"

€164.80

MXT-7422716005 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 3/4"

3/4"

€240.88

MXT-7422716006 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 1"

105

€345.45

MXT-7422716007 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 1.1/4"

1.1/4"

120

€483.32

MXT-7422716008 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 1.1/2"

1.1/2"

135

€651.29

MXT-7422716009 Ball-Valve-2.piece.body-Stainless.st- 800.LBS-BSP-Fire.Safe 2"

155

€984.08
