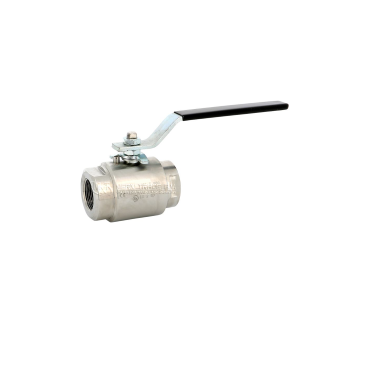

Ball valve 2piece body Stainless steel 800 LBS NPT-Fire Safe
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
NPT
PTFE
800.lbs
-97 / 23 / EC Directive No. 0948
-Risk Category III / module B + C1
-Press: 800LBS / 138 Bar
-PTFE + Carbon graphite seat
-Anti-blowout stem
-Full Bore
-Antistatisch
-Fire safe BS 6755 NACE MR0175
-Max. pressure: 138 bar Temperature: -30 ° C / + 180 ° C
-Thread connection NPT
-Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed air
Datasheet (PDF)
| SKU | MXT-7422716-NPT-Fire.Safe |
|---|
| Body material | Stainless Steel-ASTM A182 F316 |
|---|---|
| Disc / Ball / Wedge | ASTM A182 F316 |
| Seat | PTFE + carbon graphite |
