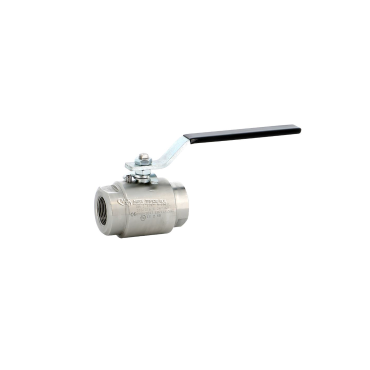

Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT

Model: 2 piece body Material body: Stainless steel 316L
Connection: Threaded NPT Material disk: Stainless steel 316L
Pressure: 248 bar Material seat: PEEK
Temperature: Max. 250°C Note: Consult the PDF

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7352718
Body material Stainless.Steel-316L
Disc / Ball / Wedge Stainless.Steel-316L
Seat PEEK
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7352718002 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 1/4" 1/4" 67
€175.50
- +
MXT-7352718003 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 3/8" 3/8" 67
€175.50
- +
MXT-7352718004 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 1/2" 1/2" 75
€226.09
- +
MXT-7352718005 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 3/4" 3/4" 90
€328.86
- +
MXT-7352718006 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 1" 1" 105
€449.02
- +
MXT-7352718007 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 1.1/4" 1.1/4" 120
€602.38
- +
MXT-7352718008 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 1.1/2" 1.1/2" 135
€826.89
- +
MXT-7352718009 Ball-Valve-2.piece.body-stainless steel-1500.LBS-250bar-NPT 2" 2" 155
€1,233.22
- +
