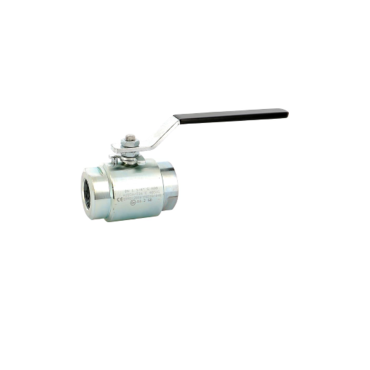

Ball valve 2piece body steel 800.LBS BSPP-Fire Safe
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
800.lbs
97/23/EC directive N° 0948 - 800 lbs Risk category III / module B + C1
PTFE + carbon graphite seats
Anti-blowoutstem - Full bore - Antistatic device
Fire safe BS 6755
Max. pressure: 138 bar
Temperature range: -20°C/+180°C
Connection= BSP
Datasheet (PDF)
| SKU | MXT-7422717000 |
|---|
| Body material | Steel ASTM A105 |
|---|---|
| Disc / Ball / Wedge | Stainless steel ASTM A182 F316 |
| Seat | PTFE + carbon graphite |
