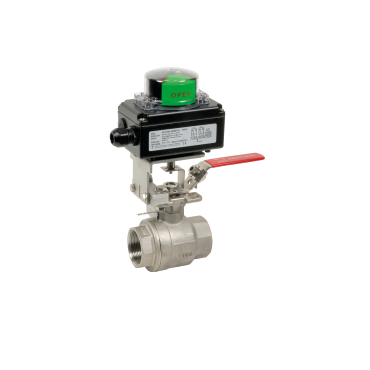

Ball valve 2-piece thread BSPP & Limit Switch Box stainless steel PN63
Ball valve 2-piece thread BSPP & Limit Switch Box stainless steel PN63
| Model: |
With limit switch |
Material body: |
Stainless steel 1.4408 |
| Connection: |
Female thread BSPP ISO 228 |
Material disc: |
St.St. EN 1.4408 check PDF |
| Temperature: |
Fluid -10°C / +180°C |
Material seat: |
PTFE + 15 % GF |
| Pressure: |
63 bars see pdf |
Steam: |
63 bars maximum check PDF |
| Limit switch |
|
|
|
| IP code: |
IP 67 |
Temperature: |
Ambiant -20°C / +80°C |
| Power: |
250V AC-5A 2 SPDT Silver Plated |
Model: |
SF 01200 |
| Body material: |
Aluminium |
Mounting bridge: |
Stainless steel |
| Dome: |
Polycarbonate |
Coating: |
Polyester paint |
| Options |
|
|
|
| SF 73200 2 inductive detectors 3 threads PNP 10-30V DC P+F NBB2 V3 E2 |
| SF 75200 2 inductive detectors 2 threads NO/NC 5-36V DC IFM IS 5026 |
| SF 83200 2 inductive detectors 2 threads NO 5-60V DC P+F NBB3 V3 Z4 |
| Indicator for 3 way L valves Indicator for 3 way T valves |
| SF3D 01200 IP65 ATEX Ex 2 SPDT silver plated mechanical switches 250V AC - 5A |
| SF3G 6H200 IP65 ATEX Ex 2 inductive detectors 3 threads PNP 10-30V DC P+F NBB2 V3 E2 |
| SIB 70221-2 IP67 ATEX Ex 2 inductive detectors NAMUR P+F NJ2 V3N / N - NO |
| Use: Shipbuilding, Chemical industries, petrochemical industries, hydraulic installation, compressed air, heating and water distribution |
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-715XSL0000 |
| Body material |
StainlessSteel-1.4408-316. |
| Disc / Ball / Wedge |
StainlessSteel-1.4408-316 |
| Seat |
PTFE with 15% graphite |
