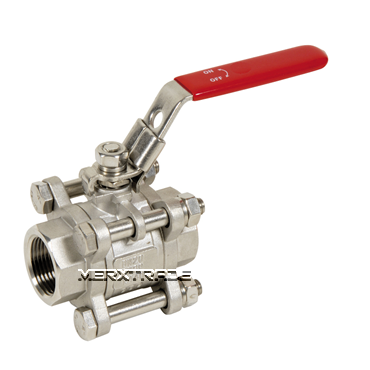

Ball valve 3piece body stainless steel/inox/PTFE-BSPP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
-97/23/EC Directive N°0035 - Risk category III / module H
-RTFE seats
-Full bore
-Anti-blowout stem
-Locking device
-TS: -20°C/+180°C
-Compressed air: 20 bar max. up to 1", 16 bar above.
-Threaded BSPP cylindrical ends according to ISO 228-1
-Max Press : 63 bars up to DN20, 40 bars from DN25 to 50, 25 bars from DN65 to 80 and 20 bars for DN100
-Chemical and pharmaceutical industries, petrochemical industries
Datasheet (PDF)
| SKU | MXT-7546790 |
|---|
| Body material | Stainless steel-CF8M |
|---|---|
| Disc / Ball / Wedge | CF8M |
| Seat | RTFE |
