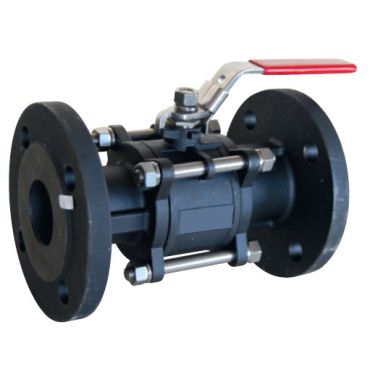

Ball valve 3piece body steel/inox/PTFE flanged PN40

Model: 3 pieces with flanges Material body: Steel A216 WCB
Connection: Flanges PN40 Material ball: Stainless steel AISI 304
Temperature: -20°C/+180°C. Material seat: PTFE+ 15% glass fiber
Pressure: 40 bars Note: Full bore

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7239730
Body material Carbon steel-A216WCB
Disc / Ball / Wedge 304
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7239730015 Ball-Valve-3.piece.body-flanged 15 15 130
€80.56
- +
MXT-7239730020 Ball-Valve-3.piece.body-flanged 20 20 150
€117.64
- +
MXT-7239730025 Ball-Valve-3.piece.body-flanged 25 25 160
€134.74
- +
MXT-7239730032 Ball-Valve-3.piece.body-flanged 32 32 180
€210.14
- +
MXT-7239730040 Ball-Valve-3.piece.body-flanged 40 40 200.
€256.15
- +
MXT-7239730050 Ball-Valve-3.piece.body-flanged 50 50 230
€363.29
- +
MXT-7239730065 Ball-Valve-3.piece.body-flanged 65 65 290
€611.17
- +
MXT-7239730080 Ball-Valve-3.piece.body-flanged 80 80 310.
€840.39
- +
MXT-7239730100 Ball-Valve-3.piece.body-flanged 100 100 350.
€1,206.08
- +
