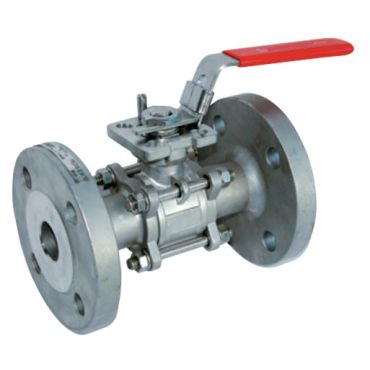

Ball valve 3piece body stainless.steel/inox/PTFE flanged PN40

97/23/EC directive N° 0038 - Risk category II - Flanged RF PN40 - DIN 3202 F1 - Stainless steel reinforced PTFE seats -Full bore - Anti-blowout stem - Antistatic device - ISO pad - Locking device - Max. pressure: 40 bar.-Temperature range: -20°C/+200°C.

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:	MXT-7239711
Body material	Stainless steel-CF8M
Disc / Ball / Wedge	CF8M
Seat	PTFE

View products

Grouped product items
SKU	Product Name	DN	Length	€ / st	Qty
MXT-7239711015	Ball-Valve-3.piece.body-ISO.pad-Flanged 15	15	130	€227.16	- +
MXT-7239711020	Ball-Valve-3.piece.body-ISO.pad-Flanged 20	20	150	€290.15	- +
MXT-7239711025	Ball-Valve-3.piece.body-ISO.pad-Flanged 25	25	160	€369.64	- +
MXT-7239711032	Ball-Valve-3.piece.body-ISO.pad-Flanged 32	32	180	€479.76	- +
MXT-7239711040	Ball-Valve-3.piece.body-ISO.pad-Flanged 40	40	200.	€655.85	- +
MXT-7239711050	Ball-Valve-3.piece.body-ISO.pad-Flanged 50	50	230	€898.31	- +
MXT-7239711065	Ball-Valve-3.piece.body-ISO.pad-Flanged 65	65	290	€1,580.58	- +
MXT-7239711080	Ball-Valve-3.piece.body-ISO.pad-Flanged 80	80	310.	€2,183.85	- +
MXT-7239711100	Ball-Valve-3.piece.body-ISO.pad-Flanged 100	100	350.	€3,476.09	- +

Ball valve 3piece body stainless.steel/inox/PTFE flanged PN40
