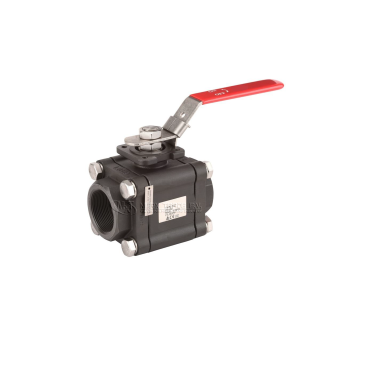

Ball valve 3piece body steel/inox/PTFE Socket weld-Fire Safe
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
Socket weld
| Model: | 3 piece | Material body: | steel A216WCB |
| Connection: | Socket weld | Material gate: | Stainless steel CF8M 316 |
| Pressure: | 140/100 bars see PDF | Material seat: | PTFE 25% carbon |
| Temperature: | -20°C/220°C | Operation: | Lever |
Datasheet (PDF)
| SKU | MXT-7622702-SW |
|---|
| Body material | Carbon steel-A216WCB |
|---|---|
| Disc / Ball / Wedge | CF8M |
| Seat | RTFE |
