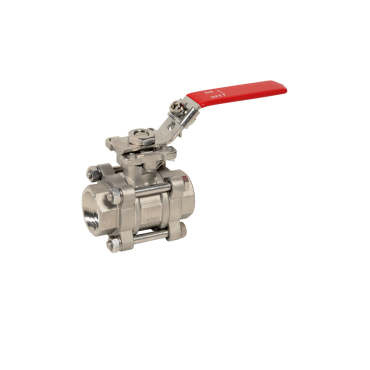

Ball valve 3 piece body XS stainless steel/RTFE Socket Weld

Model: 3 piece body Material body: Stainless steel 1.4408
Connection: Socket weld Material ball: Stainless steel CF8M
Temperature: -40°C / +180°C Material seat: PTFE+15% GF
Pressure: 63 bar check PDF Note: Check technical spec.

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-743X272600
Body material StainlessSteel-1.4408-316.
Disc / Ball / Wedge Stainless steel-CF8M-316
Seat PTFE+15%GF
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-743X272642 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-1/2"-21,9mm 1/2" 75
€76.45
- +
MXT-743X272643 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-3/4"-27,2mm 3/4" 80
€92.61
- +
MXT-743X272644 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-1"-34,0mm 1" 90
€124.64
- +
MXT-743X272645 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-1.1/4"-42,7mm 1.1/4" 110
€173.24
- +
MXT-743X272646 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-1.1/2"-48,8mm 1.1/2" 120
€242.53
- +
MXT-743X272647 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-2"-61,3mm 2" 140
€323.35
- +
MXT-743X272648 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-2.1/2"-77,0mm 2.1/2" 185
€655.69
- +
MXT-743X272649 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-3"-90,0mm 3" 205
€849.18
- +
MXT-743X272650 Ball valve 3-piece body XS St.St/RTFE Socket Weld-PN63-4"-115,5mm 4" 240
€1,345.42
- +
