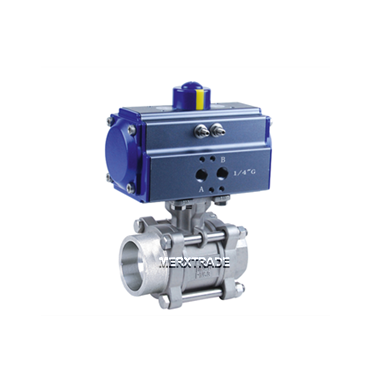

Ball valve 3-piece thread pneumatic double acting stainless.st - Socket weld-PN63

Model: 3 pieces Material body: Stainless.st 1.4408
Connection: Socket weld Material ball: Stainless.st CF8M/316
Actuating: Pneumatic double acting Material seat: PTFE+15%GF
Pressure: 63 bar ( see tech PDF) Material actuator: Aluminium
Temperature: -40°C to + 180°C ( see tech PDF) Note: EX = possible



The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-74300NK
Body material Stainless steel-CF8M-316
Disc / Ball / Wedge Stainless steel-CF8M-316
Seat PTFE
Grouped product items
SKU Product Name DN Length Ø D € / st Qty
MXT-74300NK04 Ball valve 3-piece pneumat NK52 double act St.St. Socket Weld-PN63 - 1/2'' (21,7mm) 1/2" 75
€211.68
- +
MXT-74300NK05 Ball valve 3-piece pneumat NK52 double act St.St. Socket Weld-PN63 - 3/4'' (27,3mm) 3/4" 80
€229.58
- +
MXT-74300NK06 Ball valve 3-piece pneumat NK52 double act St.St. Socket Weld-PN63 - 1'' (34,1mm) 1" 90
€269.01
- +
MXT-74300NK07 Ball valve 3-piece pneumat NK52 double act St.St. Socket Weld-PN63 - 1.1/4'' (42,8mm) 1.1/4" 110
€300.15
- +
MXT-74300NK08 Ball valve 3-piece pneumat NK63 double act St.St. Socket Weld-PN63 - 1.1/2'' (48,7mm) 1.1/2" 120
€419.48
- +
MXT-74300NK09 Ball valve 3-piece pneumat NK63 double act St.St. Socket Weld-PN63 - 2'' (61,0mm) 2" 140
€494.61
- +
MXT-74300NK10 Ball valve 3-piece pneumat NK83 double act St.St. Socket Weld-PN63 - 2.1/2'' (76,6mm) 2.1/2" 185
€901.11
- +
MXT-74300NK11 Ball valve 3-piece pneumat NK83 double act St.St. Socket Weld-PN63 - 3'' (90,0mm) 3" 205
€1,117.76
- +
MXT-74300NK12 Ball valve 3-piece pneumat NK83 double act St.St. Socket Weld-PN63 - 4'' (115,2mm) 4" 240
€1,462.36
- +
