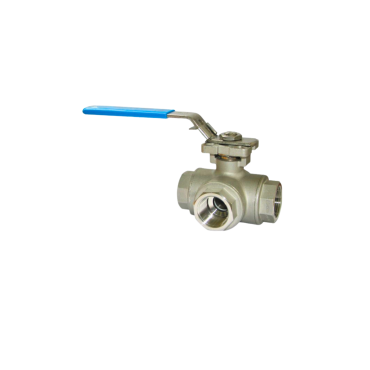

Ball valve 3-way lever St.St/RPTFE-TFM1600 BSPP Reduced L-bore PN63
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | 3 way L bore reduced | Material body: | Stainless steel 1.4408 |
| Connection: | Thread BSPP ISO 228-1 | Material Ball: | Stainless steel 1.4408 |
| Pressure: | 63 bar (1000 PSI WOG) | Material seat: | RPTFE |
| Temperature: | -20°C / +200°C | Material stem ring: | FPM (FKM) Viton® |
| Note: | check data sheet for info | Note: | Lever with locking |
| Certificate: | Fugitive Emissions (TA-Luft) | Note: | ISO 5211 Direct Mount |
| Notifications: | ATEX Directive 2014/34/EU | Note: | Reduced-bore |
| Fully interchangeable with the ECON® type 7760 3-way ball valve | |||
Datasheet (PDF)
| SKU | MXT-7760L000 |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | PTFE / TFM 1600 |
