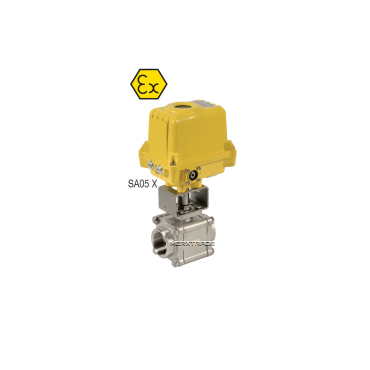

Ball valve 3 piece Thread NPT-stainless.steel Fire-safe with electric actuator 230V-AC ATEX

Ball valve stainless steel electric actuated by 230V AC ATEX actuator.
This full bore valve has the Firesafe, EC and ATEX certifications.
Voltages: 230 V AC
Protection rating: IP67
Temperature range: -20 °C / +55 °C
Gears: Treated steel
Manual override: Allen key
Marking code: II 2 G Ex d IIC T4 for zones 1 and 2 (Notified body KEMA #0344)
Enclosure/Cover: Epoxy coated aluminium

Ball valve with NPT connection.
Size: DN 8 to 50 mm
Min Temperature: -30°C   Max Temperature: + 220°C
Max Pressure: 100 to 140 Bars ( see data sheet)
Specifications: Antistatic device, Anti blow-out stem, Fire safe, Atex, Full bore, Fully encapsulated bolts
Body: ASTM A351 CF8M     Ball: ASTM A351 CF8M     Seat: PTFE filled with 25% carbon

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7033033000
Body material Stainless steel-CF8M-316
Disc / Ball / Wedge Stainless steel-CF8M-316
Seat RTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7033033001 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-1/4" 1/4" 65
€1,102.50
- +
MXT-7033033002 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-3/8" 3/8" 65
€1,117.20
- +
MXT-7033033003 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-1/2" 1/2" 72
€1,124.55
- +
MXT-7033033004 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-3/4" 3/4" 86
€1,117.20
- +
MXT-7033033005 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-1" 1" 105
€1,181.06
- +
MXT-7033033006 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-1.1/4" 1.1/4" 111
€1,267.25
- +
MXT-7033033007 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-1.1/2" 1.1/2" 127
€1,377.66
- +
MXT-7033033008 Ball valve 3 piece NPT-Stainless.St Fire-safe electric act. 230V-AC ATEX-2" 2" 145
€1,734.60
- +
