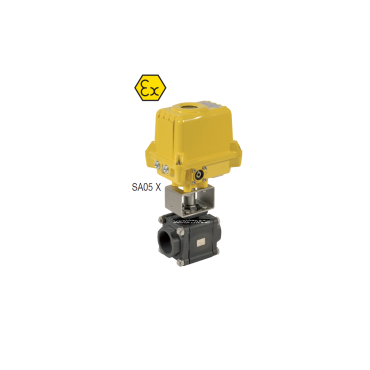

Ball valve 3 piece Thread BSP-WCB.steel Fire-safe with electric actuator 230V-AC ATEX

BSP
PTFE

Ball valve steel electric actuated by 230V AC ATEX actuator.
This full bore valve has the Firesafe, EC and ATEX certifications.
Voltages: 230 V AC
Protection rating: IP67
Temperature range: -20 °C / +55 °C
Gears: Treated steel
Manual override: Allen key
Marking code: II 2 G Ex d IIC T4 for zones 1 and 2 (Notified body KEMA #0344)
Enclosure/Cover: Epoxy coated aluminium

Ball valve with BSP connection.
Size: DN 8 to 50 mm
Min Temperature: -20°C   Max Temperature: + 220°C
Max Pressure: 100 to 140 Bars ( see data sheet)
Specifications: Antistatic device, Anti blow-out stem, Fire safe, Atex, Full bore, Fully encapsulated bolts
Body: ASTM A216 WCB     Ball: ASTM A351 CF8M     Seat: PTFE filled with 25% carbon

download Datasheet (PDF)
SKU MXT-7020033000
Body material Steel ASTM A216 WCB.
Disc / Ball / Wedge Stainless steel-CF8M-316
Seat PTFE + carbon graphite
lloyds-register ex firesafe ce iso9001
1/4"
65
€1,116.02
Qty
minus-sm
plus-sm
3/8"
65
€1,116.02
Qty
minus-sm
plus-sm
1/2"
72
€1,131.31
Qty
minus-sm
plus-sm
3/4"
86
€1,142.94
Qty
minus-sm
plus-sm
1"
105
€1,230.68
Qty
minus-sm
plus-sm
1.1/4"
111
€1,210.86
Qty
minus-sm
plus-sm
1.1/2"
127
€1,261.26
Qty
minus-sm
plus-sm
2"
145
€1,628.17
Qty
minus-sm
plus-sm
