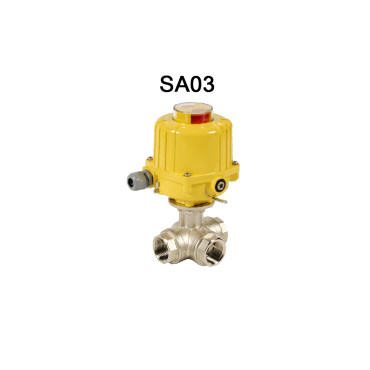

Ball valve 3-way L + T-bore Thread BSP-Messing with electric actuator 230V-AC
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | Ball valve 3-way | Material valve body: | Brass CW 617N |
| Bore: | L or T bore | Material ball: | Brass CW 617N |
| Connection: | Thread BSPP ISO 228 | Material seat: | PTFE |
| Actuator: | Electric 230V-AC IP67 quarter turn | Material body actuator: | Aluminium+Epoxy |
| Pressure max: | 16 bars | Size: | 1/4" up to 2" |
Datasheet (PDF)
| SKU | MXT-5130011000 |
|---|
| Body material | Brass CW614N |
|---|---|
| Disc / Ball / Wedge | Brass CW614N |
| Seat | PTFE |
