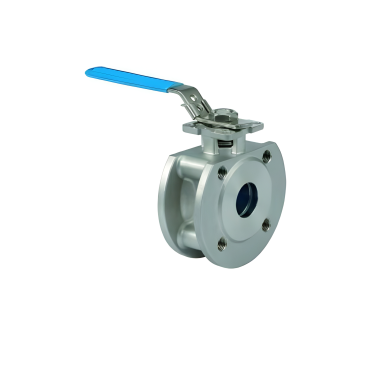

Ball valve wafer type equal to 7383FS St.St/TFM 1600 PTFE/FPM Fire safe PN10/16/25/40
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | Wafer ball valve compact type | Material body: | Stainless steel 1.4408 |
| Connection: | Threaded holes PN10/16/40 EN1092-1 | Material ball: | Stainless steel 1.4408 |
| Pressure: | 16 & 40 bars check technical PDF | Material seat: | PTFE TM1600 |
| Temperature: | -10°C + 200°C | Note: | Locking DN15 up to DN80 |
| Certificate: | Fire Safe | Note: | T-lever DN10/125/150 |
| Certificate: | Fugitive Emissions (TA-Luft) | Note: | ISO 5211 Direct Mount top-flange |
| Notifications: | ATEX Directive 2014/34/EU | Note: | Full-bore |
| Fully interchangeable with the ECON® type 7383FS wafer type ball valve | |||
| SKU | MXT-7383FS0000 |
|---|
| Body material | Stainless steel 316-1.4408 |
|---|---|
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | PTFE / TFM 1600 |
