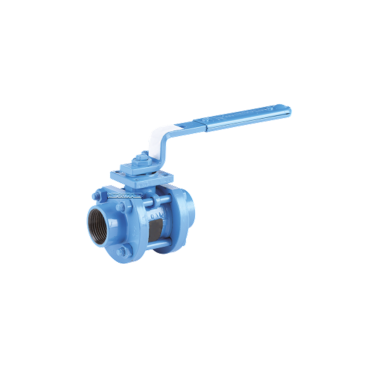

Ball valve ADLER 3-piece type FP3 thread BSP

Model: 3-piece type FP3 Material body: ASTM A351 CF8M

Connection:

Thread BSPT Material ball:

DN8-10: ASTM A479 316L

DN 15 – 100: ASTM A479 304L

Pressure: 20 to 100 Bars according to DN Material seat: PTFE
Temperature: - 28°C to + 200°C Note:  Fire safe

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7120011000
Body material Carbon.Steel
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7120011008 Ball valve ADLER 3 piece type FP3 thread BSP DN8 8 50
€161.70
- +
MXT-7120011010 Ball valve ADLER 3 piece type FP3 thread BSP DN10 10 60
€161.70
- +
MXT-7120011015 Ball valve ADLER 3 piece type FP3 thread BSP DN15 15 75
€165.54
- +
MXT-7120011020 Ball valve ADLER 3 piece type FP3 thread BSP DN20 20 80
€180.95
- +
MXT-7120011025 Ball valve ADLER 3 piece type FP3 thread BSP DN25 25 90
€200.20
- +
MXT-7120011032 Ball valve ADLER 3 piece type FP3 thread BSP DN32 25 110
€223.30
- +
MXT-7120011040 Ball valve ADLER 3 piece type FP3 thread BSP DN40 40 120
€346.50
- +
MXT-7120011050 Ball valve ADLER 3 piece type FP3 thread BSP DN50 50 140
€508.20
- +
