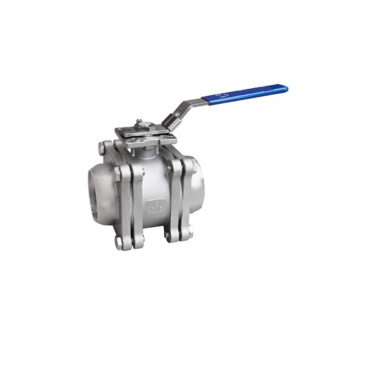

Ball valve 3 piece body Fire safe stainless steel/PTFE Butt Weld PN130

Model: 3 piece body Fire safe Material body: Stainless steel CF8M
Connection: Butt weld Material ball: Stainless steel 316
Temperature: -20°C / +180°C Material seat: PTFE
Pressure: 130 bar check PDF Note: Check heat dia technical spec.
Top connect: ISO 5211 mounting Protect: ATEX II 2GD C T2
Model: Full bore Protect: Fire safe according to API 607



The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-746BW75000
Body material Stainless steel-CF8M-316
Disc / Ball / Wedge Stainless steel-316
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-746BW75008 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-1/4"-18,1mm 1/4" 70
€83.32
- +
MXT-746BW75010 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-3/8"-18,1mm 3/8" 70
€83.32
- +
MXT-746BW75015 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-1/2"-21,7mm 1/2" 75
€83.32
- +
MXT-746BW75020 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-3/4"-27,2mm 3/4" 90
€124.37
- +
MXT-746BW75025 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-1"-34,0mm 1" 100
€161.81
- +
MXT-746BW75032 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-1.1/4"-42,7mm 1.1/4" 110
€255.99
- +
MXT-746BW75040 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-1.1/2"-48,6mm 1.1/2" 125
€355.01
- +
MXT-746BW75050 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-2"-60,5mm 2" 150
€483.00
- +
MXT-746BW75065 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-2.1/2"-76,0mm 2.1/2" 190
€946.68
- +
MXT-746BW75080 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-3"-93,0mm 3" 220
€1,368.10
- +
MXT-746BW75100 Ball valve 3-piece body Fire safe St.St/PTFE Butt Weld-PN130-4"-116,0mm 4" 270
€2,055.17
- +
