Ball valve compressed air brass/PTFE thread male-female BSPP

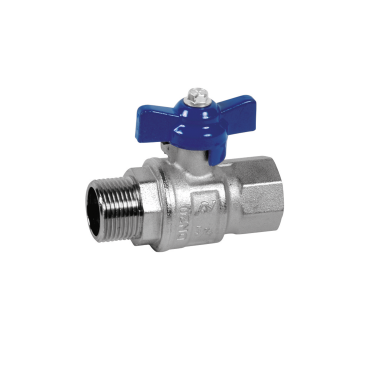

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | 2 piece body | Material body: | Brass CW614N |
| Connection: | Male-female thread BSPP | Material Ball: | Brass CE617N |
| Pressure: | 40 bar | Material seat: | PTFE |
| Temperature: | -10°C +120°C | Operation: | Butterfly lever |
| Note: | Compressed air | Type number: | VS42 |
Datasheet (PDF)
| SKU | AIRAVS43CA000 |
|---|
| Body material | Brass-CW617N |
|---|---|
| Disc / Ball / Wedge | Brass-CW617N |
| Seat | PTFE |
