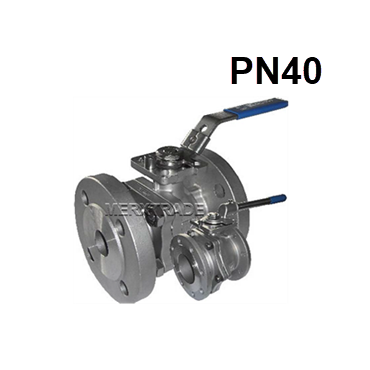

Ball valve flanged lever 2 piece body Stain.St./PTFE PN40
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 2 piece body | Material body: | St.St.ASTM A351 CF8M 1.4408 |
| Connection: | Flanged PN40 | Material Ball: | Stainless steel CF8M 1.4408 |
| Pressure: | 40bar zie PDF | Material seat: | PTFE |
| Temperature: | -20°C / 200°C | Operation: | Lever / T bar |
| Steam: | 12bar maximum |
| Use: Water, steam, oil, compressed air, vacuum (max. -0.9 bar), fuels, solvents, aggressive media |
Datasheet (PDF)
| SKU | MXT-2019660000 |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | PTFE |
