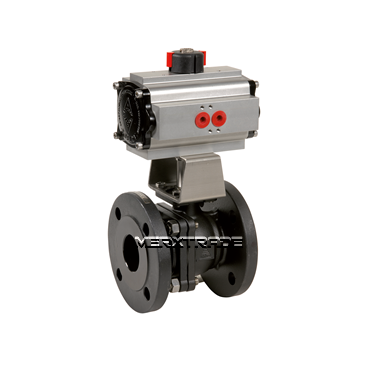

Ball valve flanged pneumatic spring return 2 piece Steel/Stain.St./PTFE PN16/40
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 2 piece body | Material body: | Carbon steel A216WCB |
| Connection: | Flanged PN16/40 | Material Ball < DN100: | Stainless steel CF8M |
| Pressure: | 40bar up to DN50 16bar over | Material Ball > DN100: | Stainless steel F316 |
| Temperature: | -20°C / 200°C | Material seat: | PTFE |
| Operation: | Pneumatic spring return |
| Fire safe ISO 10497 : 2004, API 607 5th, BS 6755 Part.2 and API 6FA |
| Use: Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air |
Datasheet (PDF)
| SKU | MXT-2742420160000 |
|---|
| Body material | Carbon steel-A216WCB |
|---|---|
| Disc / Ball / Wedge | Stainless.steel |
| Seat | PTFE |
