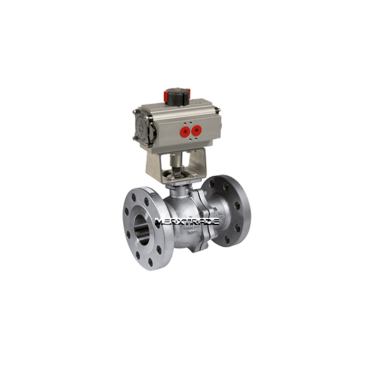

Ball valve flanged pneumatically double acting stainless.st ANSI 300lbs
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
ANSI 300#
PTFE
| Model: | Split body | Material body: | Stainless steel CF8M |
| Connection: | Flanges ANSI 300 lbs |
Material seat: | PTFE / TFM 1600 |
| Actuating: | Pneumatic double acting | Material ball: | Stainless steel 1.4408 |
| Pressure: | 50 bars ( see graph at PDF ) | Material actuator: | Aluminium |
| Temperature: | -50°C to + 230°C | Steam: | 12 bars maximum |
Datasheet (PDF)
| SKU | MXT-7693399 |
|---|
| Body material | Stainless steel-ASTM-A351-CF8M-316 |
|---|---|
| Disc / Ball / Wedge | A351-CF8M-316 |
| Seat | PTFE / TFM 1600 |
