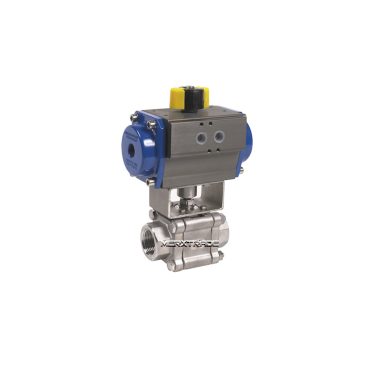

Ball valve 3-piece thread pneumatically double acting stainless.st - BSPP

Model: 3 pieces
Material body: Stainless steel A351 CF8M
Connection: Thread BSPP ISO 228-1
Material seat: PTFE filled with 25% carbon
Actuating: Pneumatic double acting Material ball: Stainless steel A351 CF8M
Pressure: 100 bars ( see graph at PDF ) Material actuator: Aluminium
Temperature: -30°C to + 220°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-703000DA
Body material Stainless steel-ASTM-A351-CF8M-316
Disc / Ball / Wedge A351-CF8M-316
Seat PTFE + carbon graphite
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-703000DA2 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 1/4'' 1/4" 64.8
€338.66
- +
MXT-703000DA3 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 3/8'' 3/8" 64.8
€338.66
- +
MXT-703000DA4 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 1/2'' 1/2" 72.5
€341.65
- +
MXT-703000DA5 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 3/4'' 3/4" 84
€373.32
- +
MXT-703000DA6 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 1'' 1" 105.3
€421.24
- +
MXT-703000DA7 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 1.1/4'' 1.1/4" 111
€504.58
- +
MXT-703000DA8 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 1.1/2'' 1.1/2" 127.3
€554.29
- +
MXT-703000DA9 Ball valve 3-piece thread pneumatic double act St.St - BSPP- 2'' 2" 154
€1,058.40
- +
