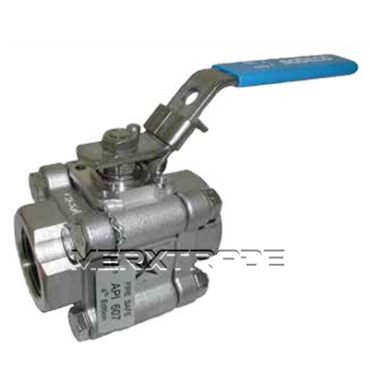

Ball valve full bore socket weld stainless steel/RTFE

Model: full bore Material body: CF8M stainless steel
Connection: Socket weld
Pressure: 138 bar up to 1" Material seat: RPTFE
Temperature: -20°C-180°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-363SS000
Body material Stainless steel-CF8M-316
Disc / Ball / Wedge Stainless.steel
Seat RTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-363SS008 Ball valve full bore socket weld stainless steel/RTFE 1/4" 8 64.8
€131.03
- +
MXT-363SS010 Ball valve full bore socket weld stainless steel/RTFE 3/8" 10 64.8
€131.03
- +
MXT-363SS015 Ball valve full bore socket weld stainless steel/RTFE 1/2" 15 72.5
€142.06
- +
MXT-363SS020 Ball valve full bore socket weld stainless steel/RTFE 3/4" 20 85.4
€176.81
- +
MXT-363SS025 Ball valve full bore socket weld stainless steel/RTFE 1" 25 105.3
€221.28
- +
MXT-363SS032 Ball valve full bore socket weld stainless steel/RTFE 1.1/4" 32 111
€306.61
- +
MXT-363SS040 Ball valve full bore socket weld stainless steel/RTFE 1.1/2" 40 127.3
€374.93
- +
MXT-363SS050 Ball valve full bore socket weld stainless steel/RTFE 2" 50 142.8
€594.79
- +
