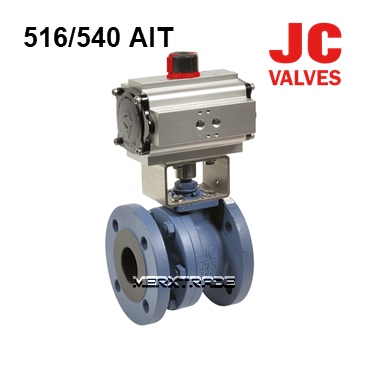

Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN16/40

Model: 2 piece body Material body: ASTM A216 WCB
Connection: Flanged PN16/40 Material Ball: Stainless steel CF8M 316
Pressure: 40bar up to DN50 16bar over Material seat: PTFE
Temperature: -20°C / 230°C Operation: Pneumatic double acting
Steam: 12bar maximum Brand: JC valves
Fire safe ISO 10497 : 2004, API 607 5th, BS 6755 Part.2 and API 6FA
Use: Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air
SIL2 according to IEC/EN 61508, SIL 3 possible according to the type of installation





The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-516540AITD
Body material ASTM A216 WCB
Disc / Ball / Wedge CF8M-316
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-540AITD015 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN40 DN15 15 115
€442.09
- +
MXT-540AITD020 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN40 DN20 20 120
€473.68
- +
MXT-540AITD025 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN40 DN25 25 125
€508.10
- +
MXT-540AITD032 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN40 DN32 32 130
€649.18
- +
MXT-540AITD040 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN40 DN40 40 140
€737.10
- +
MXT-540AITD050 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN40 DN50 50 150
€751.57
- +
MXT-516AITD065 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN16 DN65 65 170
€902.79
- +
MXT-516AITD080 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN16 DN80 80 180
€1,146.60
- +
MXT-516AITD100 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN16 DN100 100 190
€1,610.70
- +
MXT-516AITD125 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN16 DN125 125 325
€2,566.20
- +
MXT-516AITD150 Ball valve JC flanged pneumatic double acting 2 piece body Steel/Stain.St./PTFE PN16 DN150 150 350
€3,699.15
- +
