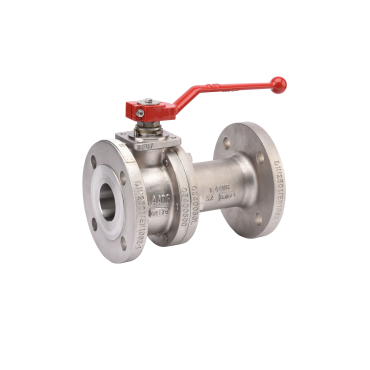

Ball valve JC IIT flanged lever 2 piece long body St.St/St.St./PTFE PN16/40
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 2 piece long body | Material body: | Stainless steel EN 1.4408 |
| Connection: | Flanged PN16/40 | Material Ball: | Stainless steel CF8M 316 |
| Pressure: | 40bar up to DN50 16bar over | Material seat: | PTFE |
| Temperature: | -50°C / 230°C | Operation: | Lever (DN200 Gearbox) |
| Steam: | 12 bar maximum | Brand: | JC valves model IIT |
| Fire safe according to ISO 10497 : 2004, API 607 5th, BS6755 Part 2, and API 6FA 1994 |
| Use: Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air |
| SIL2 according to IEC/EN 61508, SIL 3 possible according to the type of installation |
| Materials according to NACE MR 01-75 |
Datasheet (PDF)
| SKU | MXT-316340IIT |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | PTFE |
