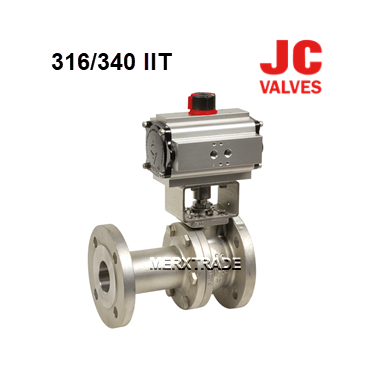

Ball valve JC flanged pneumatic double act F1- 2 piece body Stainless st./St.St./PTFE PN16/40
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
| Model: | 2 piece body long | Material body: | Stainless steel EN 1.4408 |
| Connection: | Flanged PN16/40 | Material Ball: | Stainless steel CF8M 316 |
| Pressure: | 40bar up to DN50 16bar over | Material seat: | PTFE |
| Temperature: | -50°C / 230°C | Operation: | Pneumatic double acting |
| Steam: | 12bar maximum | Brand: | JC valves |
| Fire safe ISO 10497 : 2004, API 607 5th, BS 6755 Part.2 and API 6FA |
| Use: Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air |
| SIL2 according to IEC/EN 61508, SIL 3 possible according to the type of installation |
| SKU | MXT-316340IITD |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | PTFE |
