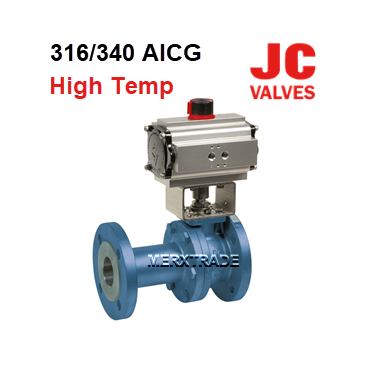

Ball valve JC High Temp flanged pneumatic spring-return F1- 2 piece body Steel/St.St./PTFE PN16/40

Ball valve JC High Temp flanged pneumatic spring-return F1- 2 piece body Steel/St.St./PTFE PN16/40
PTFE
DIN
Model: 2 piece body Long High Temp Material body: ASTM A216 WCB
Connection: Flanged PN16/40 Material Ball: Stainless steel CF8M 316
Pressure: 40bar up to DN50 16bar over Material seat: PTFE filled with 20% graphite
Temperature: -20°C / 260°C Operation: Pneumatic spring return
Steam: 12bar maximum Brand: JC valves
Fire safe ISO 10497 : 2004, API 607 5th, BS 6755 Part.2 and API 6FA
Use: Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air
SIL2 according to IEC/EN 61508, SIL 3 possible according to the type of installation





SKU MXT-316340AICGS
Body material Steel ASTM A216 WCB.
Disc / Ball / Wedge Stainless steel-CF8M-316
Seat PTFE
bureauveritas api firesafe ce 31 iso9001 made in europe
15
130
€560.20
Qty
minus-sm
plus-sm
20
150
€675.01
Qty
minus-sm
plus-sm
25
160
€675.16
Qty
minus-sm
plus-sm
32
180
€828.47
Qty
minus-sm
plus-sm
40
200
€846.24
Qty
minus-sm
plus-sm
50
230
€1,059.01
Qty
minus-sm
plus-sm
65
290
€1,264.11
Qty
minus-sm
plus-sm
80
310
€1,547.08
Qty
minus-sm
plus-sm
100
350
€1,992.15
Qty
minus-sm
plus-sm
125
400
€4,006.80
Qty
minus-sm
plus-sm
150
480
€4,800.23
Qty
minus-sm
plus-sm
