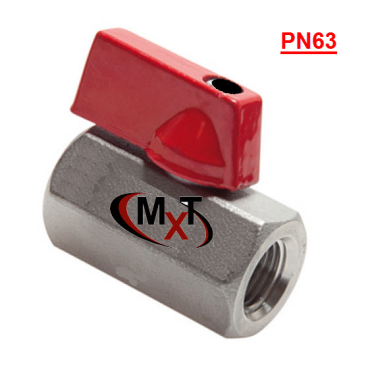

Ball valve mini Stainless steel female
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | Mini ball valve |
Material body: | Stainless steel 1.4408 316 |
| Thread: | Female BSPP | Material ball: | Stainless steel 1.4408 316 |
| Pressure: | 63 bar | Material seat: | PTFE / FKM |
| Temperature: | -20 °C up to +200 °C |
Material lever: |
Steel zinc+coating |
Operating range: Water, oil, compressed air, fuels, solvents, aggressive media-Temperature range: -20°C to max. +200°C
Datasheet (PDF)
| SKU | MXT-161063FFSS |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | Tefon/Viton |
