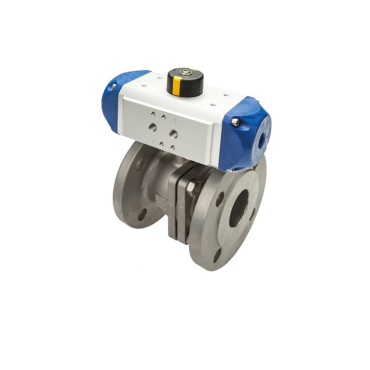

Ball valve 2-piece flanged pneumatic double-acting stainless steel PN40

Model: Ball valve pneumatic Material body: Stainless steel 1.4408
Connection: Flanged PN40 Material ball: Stainless steel 1.4408
Temperature: -20°C / +180°C Material seat: PTFE
Pressure: 40 bar Vacuum: max  -0.9 bar
Actuating: Pneumatic double acting Actuator: work press 6-10 bar

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7288DA0000
Body material StainlessSteel-1.4408-316.
Disc / Ball / Wedge StainlessSteel-1.4408-316
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7288DA0015 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN15 15 115
€368.47
- +
MXT-7288DA0020 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN20 20 120
€414.65
- +
MXT-7288DA0025 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN25 25 125
€481.61
- +
MXT-7288DA0032 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN32 32 130
€645.62
- +
MXT-7288DA0040 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN40 40 140
€700.79
- +
MXT-7288DA0050 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN50 50 150
€825.87
- +
MXT-7288DA0065 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN65 65 170
€1,464.10
- +
MXT-7288DA0080 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN80 80 180
€1,770.68
- +
MXT-7288DA0100 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN100 100 190
€2,227.41
- +
MXT-7288DA0125 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN125 125 325
€4,564.92
- +
MXT-7288DA0150 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN150 150 350
€5,945.24
- +
MXT-7288DA0200 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN40 - DN200 200 400
€10,345.56
- +
