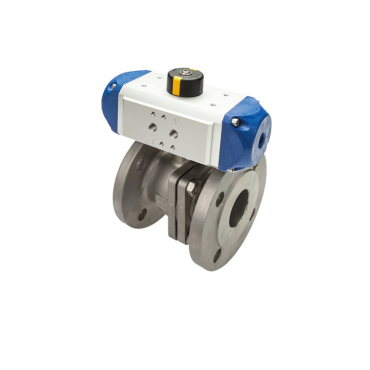

Ball valve 2-piece flanged pneumatic double-acting stainless steel PN16

Model: Ball valve pneumatic Material body: Stainless steel 1.4408
Connection: Flanged PN10/16 Material ball: Stainless steel 1.4408
Temperature: -20°C / +180°C Material seat: PTFE
Pressure: 16 bar Vacuum: max  -0.9 bar
Actuating: Pneumatic double acting Actuator: work press 6-10 bar

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7289DA0000
Body material StainlessSteel-1.4408-316.
Disc / Ball / Wedge StainlessSteel-1.4408-316
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7289DA0015 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN15 15 115
€368.47
- +
MXT-7289DA0020 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN20 20 120
€414.65
- +
MXT-7289DA0025 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN25 25 125
€481.61
- +
MXT-7289DA0032 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN32 32 130
€645.62
- +
MXT-7289DA0040 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN40 40 140
€700.79
- +
MXT-7289DA0050 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN50 50 150
€825.87
- +
MXT-7289DA0065 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN65 65 170
€1,183.88
- +
MXT-7289DA0080 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN80 80 180
€1,769.65
- +
MXT-7289DA0100 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN100 100 190
€1,915.75
- +
MXT-7289DA0125 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN125 125 325
€4,089.75
- +
MXT-7289DA0150 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN150 150 350
€5,418.00
- +
MXT-7289DA0200 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN200 200 400
€8,790.60
- +
MXT-7289DA0300 Ball valve 2-piece body pneumatic double-acting stainless steel flanged-PN16 - DN300 300 500
€23,585.10
- +
