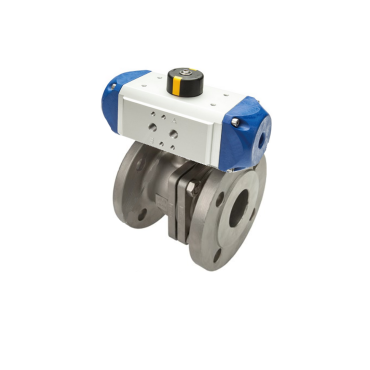

Ball valve 2-piece flanged pneumatic spring close stainless steel PN16
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
Normaly-closed
PTFE
DIN
| Model: | Ball valve pneumatic | Material body: | Stainless steel 1.4408 |
| Connection: | Flanged PN10/16 | Material ball: | Stainless steel 1.4408 |
| Temperature: | -20°C / +180°C | Material seat: | PTFE |
| Pressure: | 16 bar | Vacuum: | max -0.9 bar |
| Actuating: | Pneumatic spring close | Actuator: | work press 6-10 bar |
| SKU | MXT-7289SC0000 |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | PTFE |
