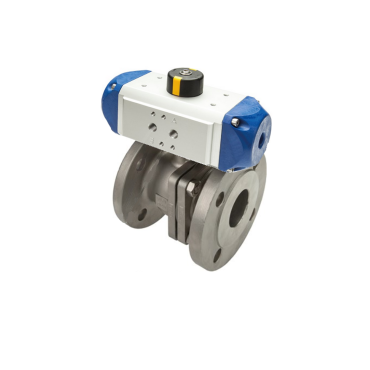

Ball valve 2-piece flanged pneumatic spring open stainless steel PN16

Model: Ball valve pneumatic Material body: Stainless steel 1.4408
Connection: Flanged PN10/16 Material ball: Stainless steel 1.4408
Temperature: -20°C / +180°C Material seat: PTFE
Pressure: 16 bar Vacuum: max  -0.9 bar
Actuating: Pneumatic spring open Actuator: work press 6-10 bar

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7289SO0000
Body material StainlessSteel-1.4408-316.
Disc / Ball / Wedge StainlessSteel-1.4408-316
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7289SO0015 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN15 15 115
€372.55
- +
MXT-7289SO0020 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN20 20 120
€406.46
- +
MXT-7289SO0025 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN25 25 125
€492.90
- +
MXT-7289SO0032 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN32 32 130
€639.78
- +
MXT-7289SO0040 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN40 40 140
€713.71
- +
MXT-7289SO0050 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN50 50 150
€898.75
- +
MXT-7289SO0065 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN65 65 170
€1,231.40
- +
MXT-7289SO0080 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN80 80 180
€1,648.60
- +
MXT-7289SO0100 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN100 100 190
€2,191.00
- +
MXT-7289SO0125 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN125 125 325
€4,195.48
- +
MXT-7289SO0150 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN150 150 350
€5,594.45
- +
MXT-7289SO0200 Ball valve 2-piece body pneumatic spring open stainless steel flanged-PN16 - DN200 200 400
€12,909.82
- +
