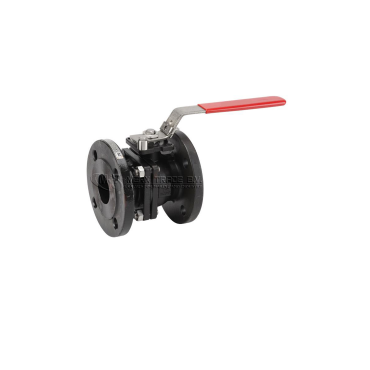

Ball valve 2piece body steel/inox/PTFE flanged ANSI 150#-Fire Safe

97/23/EC directive N°0035 - Risk category III / module H
Fire safe API 607
RTFE seats - Full bore - Anti-blowout stem Antistatic device -
ISO pad - Locking device
TS: -20°C/+200°C
Steam up to 11 bar max.
ASME B16.10
PS: 20 bar
Connection= Flange ANSI 150#     for flange PCD see page 11 in the PDF data sheet

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7245778
Body material Carbon steel-A216WCB
Disc / Ball / Wedge Stainlessteel
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7245778015 Ball-Valve-Split.body-ANSI-150# 15 15 108
€84.08
- +
MXT-7245778020 Ball-Valve-Split.body-ANSI-150# 20 20 117
€94.54
- +
MXT-7245778025 Ball-Valve-Split.body-ANSI-150# 25 25 127
€126.34
- +
MXT-7245778032 Ball-Valve-Split.body-ANSI-150# 32 32 140
€159.39
- +
MXT-7245778040 Ball-Valve-Split.body-ANSI-150# 40 40 165.
€228.63
- +
MXT-7245778050 Ball-Valve-Split.body-ANSI-150# 50 50 178.
€319.12
- +
MXT-7245778065 Ball-Valve-Split.body-ANSI-150# 65 65 190.
€532.90
- +
MXT-7245778080 Ball-Valve-Split.body-ANSI-150# 80 80 203
€648.84
- +
MXT-7245778100 Ball-Valve-Split.body-ANSI-150# 100 100 229
€1,014.43
- +
