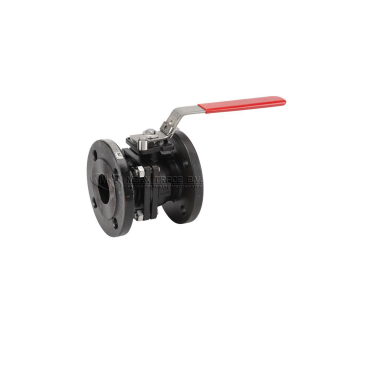

Ball valve 2piece body steel/inox/PTFE flanged PN16/40 Fire Safe
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
97/23/EC directive N°0035 - Risk category III / module H
Fire safe API 607
RTFE seats - Full bore - Anti-blowout stem Antistatic device -
ISO pad - Locking device
TS: -20°C/+200°C
Steam up to 11 bar max.
DIN 3202 F4 up to DN100, F5 above
PS: 40 bar up to DN50, 16 bar above.
Connection= Flange PN16/40 for flange PCD see page 14 in the PDF data sheet
Fire safe according to API607 up to DN150 size DN200 not fire safe
Datasheet (PDF)
| SKU | MXT-7249762 |
|---|
| Body material | Carbon steel-A216WCB |
|---|---|
| Disc / Ball / Wedge | CF8M |
| Seat | RTFE |
