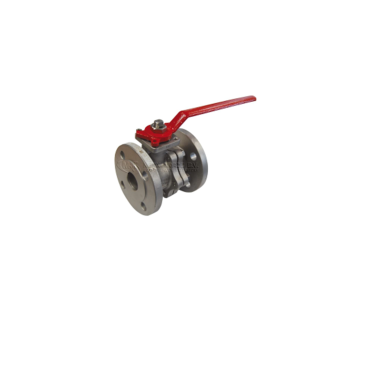

Ball valve 2piece body stainless steel/inox/PTFE flanged PN16/40-Fire Safe-High Temp.
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
PTFE
DIN
97/23/EC directive N°0056 - Risk category III / module H
Fire safe ISO 10497 - High temperature
Plain PTFE TFM1600 seats
Full bore - Anti-blowout stem - Antistatic system
ISO pad -Locking device
Ball with decompression hole
TS: -50°C/+230°C.
Steam up to 12 bar max.
DIN 3202 F4 up to DN100, F5 above
PS: 40 bar up to DN50, 16 bar above
Connection= Flange PN16/40
Datasheet (PDF)
| SKU | MXT-7289753 |
|---|
| Body material | Stainless steel-CF8M-316 |
|---|---|
| Disc / Ball / Wedge | CF8M-316 |
| Seat | PTFE |
