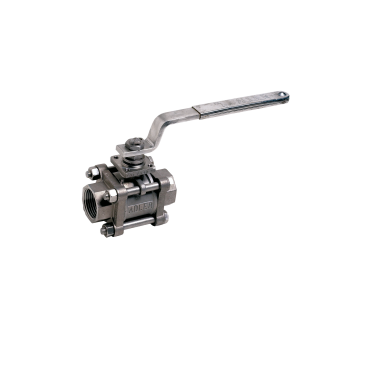

Ball valve stainless steel ADLER 3-piece type FP3 thread BSP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | 3-way type FP3 | Material body: | Stainless steel ASTM A351 CF8M |
| Connection: | thread | Material ball: | ASTM A479 316L |
| Pressure: | 20 to 100 bar | Material seat: | PTFE |
| Temperature: | - 28°C to + 200°C |
Brand: | Adler |
Datasheet (PDF)
| SKU | MXT-7130011000 |
|---|
| Body material | Stainless Steel-ASTM A351 CF8M |
|---|---|
| Disc / Ball / Wedge | ASTM A479 type 316 |
| Seat | PTFE |
Adler Spa ball valves.
Various range of ball valves ( we only offer a part)
FA1, FB1, FC1, FA2 FB2, FC2, FE2, FG2, FN2, FF2, FM2, FH2, FP2, FS2, FP3, FT6, FU4, FZ4, FZ6, FT4, FV4, FA4, VT5, RT7, VM2, VG2, VE2, VN2, FA8, FB8, FX1, FY2, FJ2, FX2, FY1, FK2, FR3, FR2,
