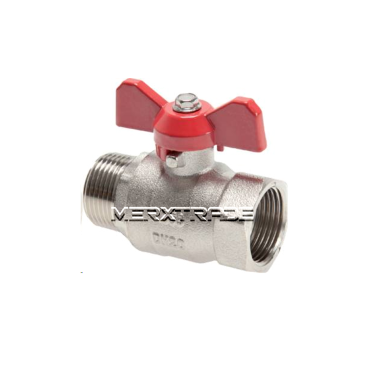

Ball valve T-handle brass full bore male/female thread BSPP

Model: Full bore Material body: Brass nickel-plated
Connection: Male/female thread BSPP ISO228 Material seat PTFE / NBR
Actuation: Toggle lever Material ball:
Chrome-plated brass
Working press:
25 bar
Working temp: -12°C  to  +95°C

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-5270029000
Body material Brass-nickel-plated
Disc / Ball / Wedge Chromed brass
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-5270029008 Ball valve T-handle brass full bore male/female thread BSPP PN25 R.1/4" 1/4" 48.5
€4.27
- +
MXT-5270029010 Ball valve T-handle brass full bore male/female thread BSPP PN25 R.3/8" 3/8" 50
€4.35
- +
MXT-5270029015 Ball valve T-handle brass full bore male/female thread BSPP PN25 R.1/2" 1/2" 57
€6.54
- +
MXT-5270029020 Ball valve T-handle brass full bore male/female thread BSPP PN25 R.3/4" 3/4" 64
€8.75
- +
MXT-5270029025 Ball valve T-handle brass full bore male/female thread BSPP PN25 R.1" 1" 74
€13.92
- +
MXT-5270029032 Ball valve T-handle brass full bore male/female thread BSPP PN25 R.1.1/4" 1.1/4" 87
€23.13
- +
