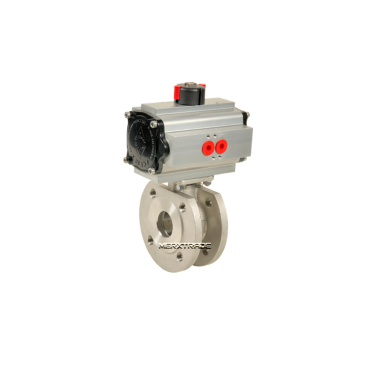

Ball valve wafer type stainless.steel pneumatic double acting

Model: Wafer with pneumatic acting Material body: Stainless.steel 1.4408
Connection: Wafer with thread holes Material ball: Stainless.steel 316
Actuating: Pneumatic double acting Material seat: PTFE+15% GF
Temperature: -30°C/+180°C Pressure: 16 bar

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-77100AD000
Body material StainlessSteel-1.4408-316.
Disc / Ball / Wedge CF8M-316
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-77100AD015 Ball valve wafer type stainless.st pneumatic double act PN16 - DN15 15 42
€389.55
- +
MXT-77100AD020 Ball valve wafer type stainless.st pneumatic double act PN16 - DN20 20 44
€389.55
- +
MXT-77100AD025 Ball valve wafer type stainless.st pneumatic double act PN16 - DN25 25 50
€389.55
- +
MXT-77100AD032 Ball valve wafer type stainless.st pneumatic double act PN16 - DN32 32 54
€426.31
- +
MXT-77100AD040 Ball valve wafer type stainless.st pneumatic double act PN16 - DN40 40 68
€595.35
- +
MXT-77100AD050 Ball valve wafer type stainless.st pneumatic double act PN16 - DN50 50 82
€676.20
- +
MXT-77100AD065 Ball valve wafer type stainless.st pneumatic double act PN16 - DN65 65 103
€885.15
- +
MXT-77100AD080 Ball valve wafer type stainless.st pneumatic double act PN16 - DN80 80 122
€1,030.83
- +
MXT-77100AD100 Ball valve wafer type stainless.st pneumatic double act PN16 - DN100 100 152
€1,661.10
- +
