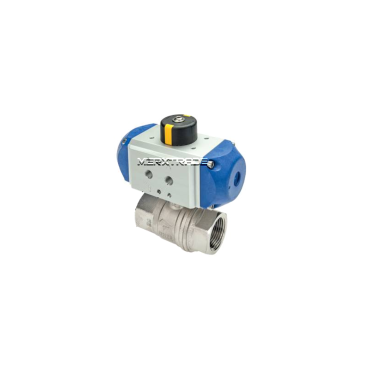

Ball valve pneumatic act double acting brass/PTFE thread BSP

Model: 2 piece body Material body: Brass nickel
Connection: Thread BSP Material Ball: Brass chrome
Pressure: 40 / 30 / 25 / 20 bar Material seat: PTFE
Temperature: 160°C up to 2" above 120°C Operation: Double acting
Approval DVGW 1/2" up to 2" Lenght accord: DIN 3202-M3 1/2"" up to 2"

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-1607DA6000
Body material Brass-nickel-plated
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-1607DA6001 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-1/4" 1/4" 67
€190.26
- +
MXT-1607DA6002 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-3/8" 3/8" 67
€190.26
- +
MXT-1607DA6003 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-1/2" 1/2" 75
€190.26
- +
MXT-1607DA6004 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-3/4" 3/4" 80
€197.51
- +
MXT-1607DA6005 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-1" 1" 90
€200.19
- +
MXT-1607DA6006 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-1.1/4" 1.1/4" 110
€252.55
- +
MXT-1607DA6007 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-1.1/2" 1.1/2" 120
€285.33
- +
MXT-1607DA6008 Ball valve pneumatic double acting brass/PTFE thread BSP-PN40-2" 2" 140
€344.02
- +
MXT-1607DA6009 Ball valve pneumatic double acting brass/PTFE thread BSP-PN30-2.1/2" 2.1/2" 165
€497.07
- +
MXT-1607DA6010 Ball valve pneumatic double acting brass/PTFE thread BSP-PN25-3" 3" 188
€874.71
- +
MXT-1607DA6011 Ball valve pneumatic double acting brass/PTFE thread BSP-PN20-4" 4" 200
€1,425.50
- +
