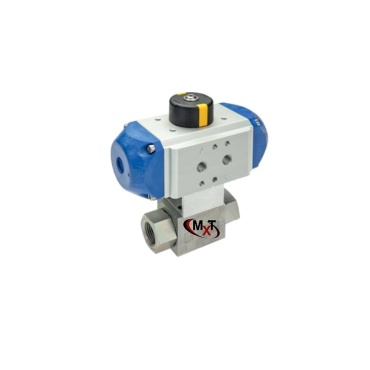

Ball valve high pressure pneumatic double acting stainless.steel thread BSPP
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
BSP
PTFE
| Model: | Straight | Material body: | Stainless.steel 1.4571 |
| Actuating: | Pneumatic doubleacting | Material ball: | Stainless.steel 1.4571 |
| Connection: | Thread BSPP | Material ball: | Stainless.steel 1.4571 |
| Pressure range: | 1/4"-3/8"-1/2"-3/4"=500bar |
Material seal: | POM |
| Pressure range: | 1"-1.1/4"-1.1/2"-2" =315bar | Material actuator: | Aluminium anodized |
| Temp range: | -20°C to max. +100°C 1/4" up to 1" | Operating range: | Hydraulic oil, heating oil |
| Temp range: | -10°C to max. +80°C 1.1/4" up to 2" |
| SKU | MXT-1950023000 |
|---|
| Body material | Stainless-Steel-1.4571 |
|---|---|
| Disc / Ball / Wedge | Stainless.steel |
| Seat | POM |
