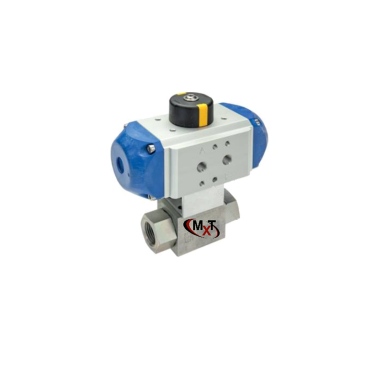

Ball valve high pressure pneumatic double acting steel / zinc thread BSPP
Ball valve high pressure pneumatic double acting steel / zinc thread BSPP
| Model: |
Straight |
Material body: |
Steel zinc plated |
| Actuating: |
Pneumatic doubleacting |
Material ball: |
Hard chromeplat brass 1/4" up to 1" |
| Connection: |
Thread BSPP |
Material ball: |
Hard chromeplat steel 1.1/4" up to 2" |
| Pressure range: |
1/4"-3/8"-1/2"-3/4"=500bar
|
Material seal: |
POM |
| Pressure range: |
1"-1.1/4"-1.1/2"-2" =315bar |
Material actuator: |
Aluminium anodized |
| Temp range: |
-20°C to max. +100°C 1/4" up to 1" |
Operating range: |
Hydraulic oil, heating oil |
| Temp range: |
-10°C to max. +80°C 1.1/4" up to 2" |
|
|
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-1950022000 |
| Body material |
Steel-Zinc.Plated |
| Disc / Ball / Wedge |
Chromed brass |
| Seat |
POM |
