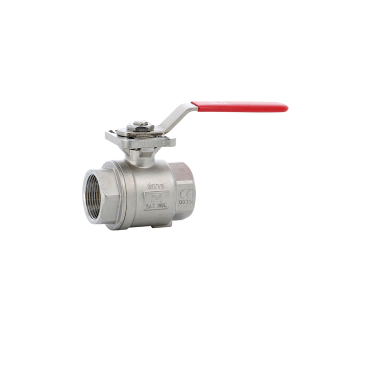

Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63

Model:  ISO 5211 MOUNTING Material body: Stainless steel 1.4408
Connection: Thread female BSPP ISO 7 Rp Material ball: Stainless steel 1.4408
Temperature: -20°C / +200°C Material seat: PTFE filled with glass or TFM1600
Pressure: 63 bar check PDF Note: Steam max 11 bar

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: 7752ISO0000
Body material StainlessSteel-1.4408-316.
Disc / Ball / Wedge StainlessSteel-1.4408-316
Seat PTFE / TFM 1600
Grouped product items
SKU Product Name DN Length € / st Qty
7752ISO0004 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 1/2" 1/2" 58
€43.34
- +
7752ISO0005 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 3/4" 3/4" 65.6
€51.07
- +
7752ISO0006 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 1" 1" 78.7
€76.73
- +
7752ISO0007 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 1.1/4" 1.1/4" 90
€106.66
- +
7752ISO0008 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 1.1/2" 1.1/2" 105
€170.23
- +
7752ISO0009 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 2" 2" 124
€234.82
- +
7752ISO0010 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 2.1/2" 2.1/2" 146.2
€456.75
- +
7752ISO0011 Ball valve full bore ISO pad locking St.St./PTFE BSPP PN63 - 3" 3" 163.7
€546.80
- +
