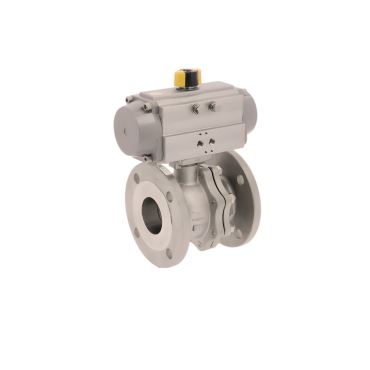

Ball valve flanged pneumatic spring-close 7289 Stainless steel/TFM 1600 PTFE/FPM Fire safe PN10/16/25/40
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
Normaly-closed
PTFE
DIN
| Model: | Ball valve 2-piece body type 7249 | Material body: | Cast steel 1.6019 (GP240GH) |
| Connection: | Flange PN10/16/40 EN1092-1FB | Material ball: | Stainless steel 1.4308 |
| Pressure: | 16 & 40 bars check technical PDF | Material seat: | PTFE TM1600 |
| Temperature: | -10°C + 200°C | Note: | Locking DN15 up to DN80 |
| Certificate: | Fire Safe | Note: | T-lever DN10/125/150 |
| Certificate: | Fugitive Emissions (TA-Luft) | Note: | ISO 5211 Direct Mount top-flange |
| Notifications: | ATEX Directive 2014/34/EU | Note: | Full-bore |
| Fully interchangeable with the ECON® type 7249FS ball valve split body | |||
| SKU | MXT-7289SC0000 |
|---|
| Body material | StainlessSteel-1.4408-316. |
|---|---|
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | PTFE |
