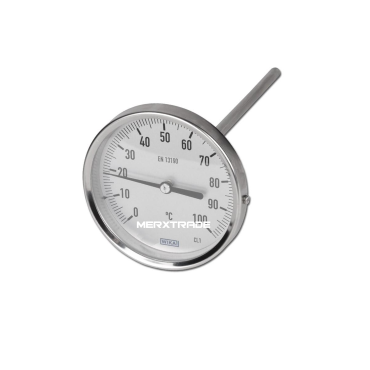

Bimetal thermometer WIKA Petro-Chemical St.St. Casing Ø 100mm back connection 1/2"

WIKA Bimetallic thermometer, mesuring range degrees, Accuracy class, Back connection thermometer, insert stainless steel, eriks, econosto, sika, Measuring range EN 13190, thermowell, IP65, IP66, IP67, model R, Lower mount, S55 back mount, DAkkS calibratio

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

BSP

Ø 100mm

Model:	Bimetal thermometer	Performance:	Chemical version
Connection:	Thread BSPP 1/2" back	Stem insert:	Thermowell model B
Size casing:	Dia Ø 100mm	Display correction:	Indicator + micro-adjustment
Size stem:	Dia Ø 8mm	Scale division:	1 °C
Protection class:	IP 65	Error limit:	1 °C
Operating pressure stem:	Max 25 bar	Class:	1.0
Temperature range:	Environment: -40°C to +70°C	Material housing:	Stainless steel 1.4301
DR* (at single product)	Display range °C	Material insert:	Stainless steel 1.4571
MR* (at single product)	Measurement range °C	Material window:	Instrument plate glass
L= (at single product)	Stem insert lenght mm	Brand:	WIKA

SKU	S55020100000

Body material	Stainless Steel 1.4301/1.4571

SKU

Product Name

Length

€ / Piece

Qty

S55020100001 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -50 to +50 °C MR* -40 to +40 °C L= 63 mm

€280.66

S55020100002 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -50 to +50 °C MR* -40 to +40 °C L= 100 mm

100

€280.66

S55020100003 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -50 to +50 °C MR* -40 to +40 °C L= 160 mm

160

€280.66

S55020100004 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -50 to +50 °C MR* -40 to +40 °C L= 200 mm

200

€280.66

S55020100005 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -30 to +50 °C MR* -20 to +40 °C L= 63 mm

€261.71

S55020100006 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -30 to +50 °C MR* -20 to +40 °C L= 100 mm

100

€261.71

S55020100007 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -30 to +50 °C MR* -20 to +40 °C L= 160 mm

160

€261.71

S55020100008 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -30 to +50 °C MR* -20 to +40 °C L= 200 mm

200

€261.71

S55020100009 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -20 to +60 °C MR* -10 to +50 °C L= 63 mm

€261.71

S55020100010 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -20 to +60 °C MR* -10 to +50 °C L= 100 mm

100

€261.71

S55020100011 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -20 to +60 °C MR* -10 to +50 °C L= 160 mm

160

€261.71

S55020100012 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* -20 to +60 °C MR* -10 to +50 °C L= 200 mm

200

€261.71

S55020100013 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +60 °C MR* 10 to +50 °C L= 63 mm

€246.51

S55020100014 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +60 °C MR* 10 to +50 °C L= 100 mm

100

€246.51

S55020100015 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +60 °C MR* 10 to +50 °C L= 160 mm

160

€246.51

S55020100016 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +60 °C MR* 10 to +50 °C L= 200 mm

200

€246.51

S55020100017 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +80 °C MR* 10 to +70 °C L= 63 mm

€246.51

S55020100018 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +80 °C MR* 10 to +70 °C L= 100 mm

100

€246.51

S55020100019 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +80 °C MR* 10 to +70 °C L= 160 mm

160

€246.51

S55020100020 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +80 °C MR* 10 to +70 °C L= 200 mm

200

€246.51

S55020100021 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +100 °C MR* 10 to +90 °C L= 63 mm

€246.51

S55020100022 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +100 °C MR* 10 to +90 °C L= 100 mm

100

€246.51

S55020100023 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +100 °C MR* 10 to +90 °C L= 160 mm

160

€246.51

S55020100024 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +100 °C MR* 10 to +90 °C L= 200 mm

200

€246.51

S55020100025 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +120 °C MR* 20 to +100 °C L= 63 mm

€246.51

S55020100026 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +120 °C MR* 20 to +100 °C L= 100 mm

100

€246.51

S55020100027 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +120 °C MR* 20 to +100 °C L= 160 mm

160

€246.51

S55020100028 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +120 °C MR* 20 to +100 °C L= 200 mm

200

€246.51

S55020100029 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +160 °C MR* 20 to +140 °C L= 63 mm

€246.51

S55020100030 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +160 °C MR* 20 to +140 °C L= 100 mm

100

€246.51

S55020100031 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +160 °C MR* 20 to +140 °C L= 160 mm

160

€246.51

S55020100032 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +160 °C MR* 20 to +140 °C L= 200 mm

200

€246.51

S55020100033 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +200 °C MR* 20 to +180 °C L= 63 mm

€246.51

S55020100034 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +200 °C MR* 20 to +180 °C L= 100 mm

100

€246.51

S55020100035 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +200 °C MR* 20 to +180 °C L= 160 mm

160

€246.51

S55020100036 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +200 °C MR* 20 to +180 °C L= 200 mm

200

€246.51

S55020100037 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +250 °C MR* 30 to +220 °C L= 63 mm

€261.71

S55020100038 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +250 °C MR* 30 to +220 °C L= 100 mm

100

€261.71

S55020100039 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +250 °C MR* 30 to +220 °C L= 160 mm

160

€261.71

S55020100040 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +250 °C MR* 30 to +220 °C L= 200 mm

200

€261.71

S55020100042 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +300 °C MR* 30 to +270 °C L= 100 mm

100

€261.56

S55020100043 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +300 °C MR* 30 to +270 °C L= 160 mm

160

€280.66

S55020100044 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +300 °C MR* 30 to +270 °C L= 200 mm

200

€280.66

S55020100045 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +400 °C MR* 50 to +350 °C L= 63 mm

€280.66

S55020100046 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +400 °C MR* 50 to +350 °C L= 100 mm

100

€280.66

S55020100047 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +400 °C MR* 50 to +350 °C L= 160 mm

160

€280.66

S55020100048 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +400 °C MR* 50 to +350 °C L= 200 mm

200

€280.66

S55020100049 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +500 °C MR* 50 to +450 °C L= 63 mm

€280.66

S55020100050 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +500 °C MR* 50 to +450 °C L= 100 mm

100

€280.66

S55020100051 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +500 °C MR* 50 to +450 °C L= 160 mm

160

€280.66

S55020100052 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +500 °C MR* 50 to +450 °C L= 200 mm

200

€280.66

S55020100053 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +600 °C MR* 100 to +500 °C L= 63 mm

€280.66

S55020100054 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +600 °C MR* 100 to +500 °C L= 100 mm

100

€280.66

S55020100055 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +600 °C MR* 100 to +500 °C L= 160 mm

160

€280.66

S55020100056 Bimetal thermometer St.St. Ø 100mm back 1/2" DR* 0 to +600 °C MR* 100 to +500 °C L= 200 mm

200

€280.66

Bimetal thermometer WIKA Petro-Chemical St.St. Casing Ø 100mm back connection 1/2"
